| 칩 재료: | 잉간 | 입력 전압: | 3.0-3.4V |
|---|---|---|---|
| 수명: | 100000 시간 | 작동 온도: | -20-80 ℃ |
| 광학 감쇠: | 0.3% | 전력 소산: | 0.4 |
| 저장 온도: | -40-110 - | 보기 각도: | 120 ° |
| 개요 차원: | 3.5*3.5mm; 5.0*5.0mm | 기판: | 세라믹 |
| 근무 시간: | 200000 시간 | 색 파장: | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
| 빛나는 효율성: | r = 100-150lm g = 150-200lm b = 30-60lm W = 180-240lm | 전류 전류: | 700MA-1500MA |
| 힘: | 3W; 4W; 5W; 10W; 12W | ||
| 강조하다: | 700mA SMD LED Chip,4 in 1 Color 5050 LED Chip,3-Year Warranty RGBW LED Chip |
||
Our LEDs feature gold wire construction for superior conductivity, thermal performance, corrosion resistance, and chemical stability. High-end packaging technology ensures reliable product performance. Custom solutions available.
| POWER DISSIPATION: | 3W; 4W; 5W; 10W; 12W |

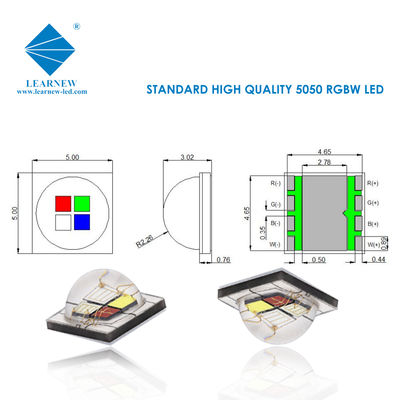

| COB SIZE: | 3.5*3.5MM; 5.0*5.0MM |
| VIEW ANGLE: | 120DEG |
| CHIPS PKG MODEL: | Epiled & Flip CHIP |
| SUBSTATE LOAD: | Ceramic |
| MANUFACTURER: | LEARNEW OPTO |

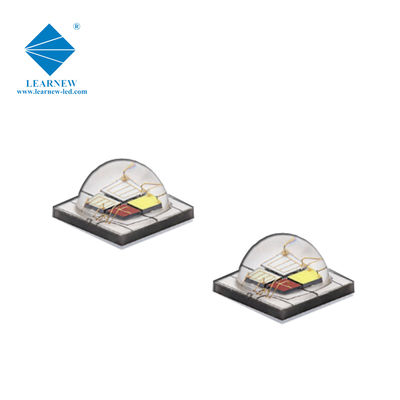

Our 5050 LED beads offer customizable color temperatures from 2200K to 25000K with advanced process technology. Ideal for:

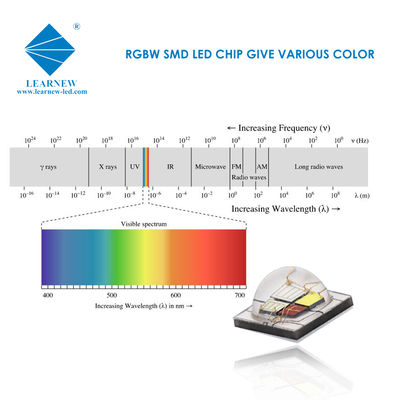

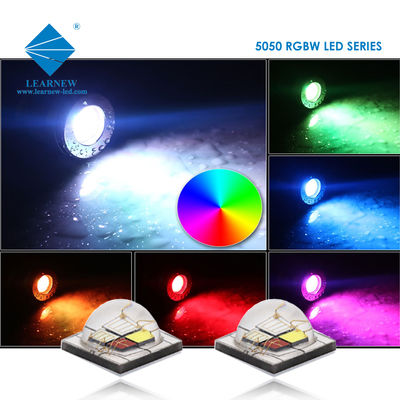

The 5050 RGB full-color LED beads can emit both full-color light and various monochromatic lights, serving as a true seven-color light source that can be mixed into white light.
Number of reflow processes should not exceed 2 times. Cooling to normal temperature is required between first and second soldering processes.
Use wrist bands or anti-electrostatic gloves when handling LEDs. Ensure all devices and equipment are properly grounded. Damaged LEDs may show unusual characteristics such as lower forward voltage or failure to light at low current.
Before opening package: Store at ≤30°C and ≤70% RH. Use within one year of manufacture.
