제품 상세 정보:
원래 장소: 중국
브랜드 이름: LEARNEW
인증: CE
모델 번호: 3538 시리즈
결제 및 배송 조건:
최소 주문 수량: 2000-10000개
가격: negotiable
포장 세부 사항: 먼지 및 정전기 방지 패키지
배달 시간: 표본은 1-7 일일, 주문량은 1-4주
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램
공급 능력: 500월 1000PCS

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

설명
이름: COB LED 칩 힘: 250w
조건: 2A*5 VF: 24-26V

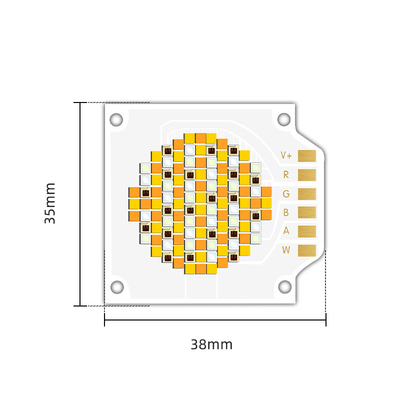

전체 크기: 35X38mm (35X38mm) 제공하다: 맞춤형
강조하다:

3538 COB LED Chip

,

250W-350W COB LED Chip

,

Five Color COB LED Chip

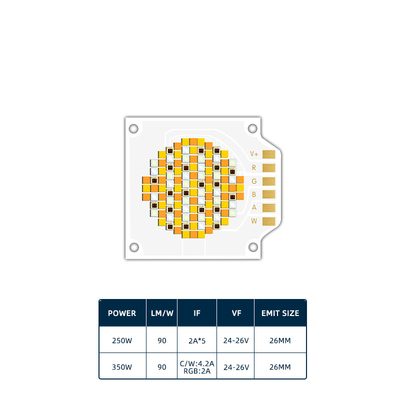

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
3538 SERIES 250W/350W Five colors COB 620nm/460nm/520nm/2700K /6500K 90 2A*5 24-26V 35X38MM 26MM 120° 95 Boss thermal and electrical separation copper substrate + aluminum nitride structure

COB (Chip on Board) LED is an LED packaging technology that directly connects LED chips to the PCB substrate instead of using traditional LED packaging. The advantages of five-color COB LEDs mainly include:

  • High brightness: COB LEDs integrate multiple LED chips on the same substrate, so they can provide higher brightness output.
  • Uniform light distribution: Since multiple LED chips are on the same substrate, COB LEDs can provide more uniform light distribution and reduce the light spot problem caused by multiple light sources.
  • Compact design: COB LEDs are more compact than traditional LED packages and are suitable for some applications with limited space.
  • Thermal management: COB LEDs integrate multiple LED chips on the PCB substrate, which helps to improve heat dissipation and extend the service life of LED lamps.
  • High color reproduction: Due to the combination of multiple LED chips, COB LEDs can provide a wider range of color temperature and color options with better color reproduction.

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 0Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 1

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 2

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 3



Five color COB Chip FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
